This specially designed LED, called ‘LEDO’ is a patented technology that allows user easily incorporate LEDs onto the glass panel at your own premises. Unlike the traditional methods, it does not require user to cut line on glass, use conductive film, or pre-order the LEDs on film. User just simply place the LEDO in between two pieces of conductive glass panel will do and then supply the DC power source to light up the LEDs.
Moreover, the arrangements of LEDs position is up to individual imagination to create and place. It is only limited by your own imaginations.
How it works?
Simply place the LEDO in between the two conductive glass panels and then supplied the DC power source at the glass panels on conductive panel side will do. The LED will be lighted up through the conductive material on the glass panel which acts as an ‘invisible’ wire. Therefore, no messy or distracting wires are laying around on the glass panels which help to create a magical and artistic looks on the overall design.
Applications
Since it is using LEDs to light up, there is a huge applications for this LEDO onglass (known as ‘LEDON Glass’ ), examples
- Shelving Light
- Furniture Light, eg. Table top display
- Display Light, eg. Counter display
- Façade
- Skylight , Wall Light
- Decorative Light, eg.
- Boutique, shop windows
- Advertisement eg. Light up poster, etc..
Dual purpose – display and light up

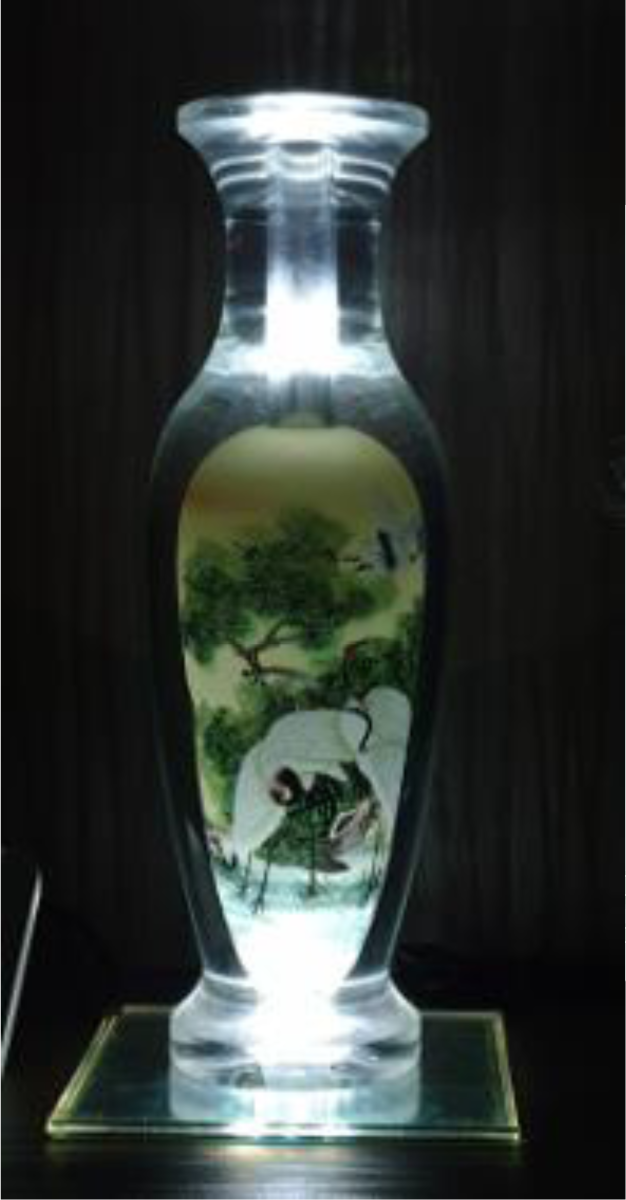

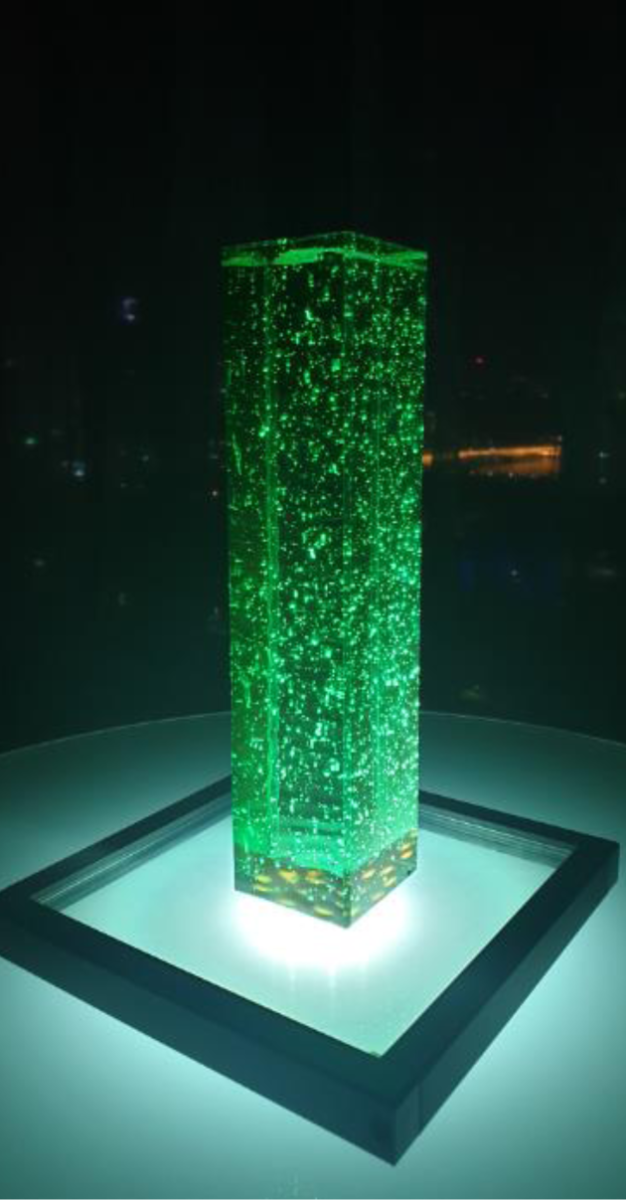

Murano Glass, Crystal figurine, or Liuli crystal is lighted up by simply placing it on the LEDON.
LEDO Technical Specifications:
- LED Type: 3030
- Overall diameter: 5.5mm
- Overall thickness: 2mm
- LED color: Daylight, 6500K
- LED Lifetime: 10,000 hours
LEDO on Glass Technical Specifications (LEDON):
- Operating Voltage: 5~24VDC*
- Operating Current: min. 1A*
- Glass sizes: upto 2000 x 3000 mm
- Glass#1 Thickness (T1): 4~12mm
- Glass#2 Thickness (T2): 4~12mm
- Spacing between 2 glass panels (S1):1.8mm~ 2mm
- *Depend on Glass type and LED design
